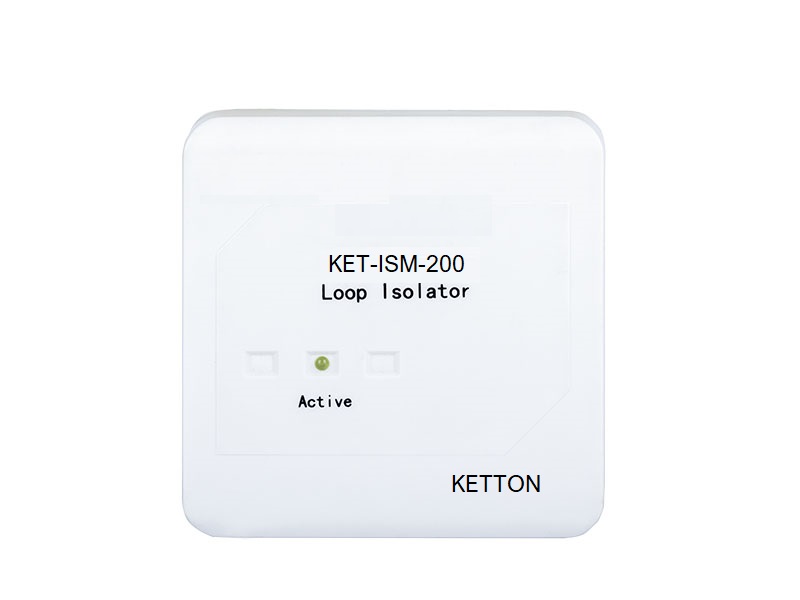

KET-ISM-200 Addressable Loop Isolator

• Polarized connection with peripheral devices and no need to transfer connection of input and output.
• Delayed power supply to output terminal devices will avoid over load or strong transient current
• Plug-in structure
• Non-polarized two-wire

Take surface installation for the isolator, install the base upward of the arrow direction, plug-in for the isolator to the base. Pull off the isolator, wear the cable through wiring hole on the base and connect correspondent terminal and plug in the isolator. Mounting hole distance is 60mm. Addressable Loop Isolator

BS(pin 5),AS(pin 8):loop negative; BP(pin 6),AP(pin 7):loop positive

The positive cable inserts from pin 7 and out from pin 6. The cable negative inserts from pin 8 and out from pin 5

5.6 Recommended Cabling:1.0mm² or above fire cable，subject to local codes.
