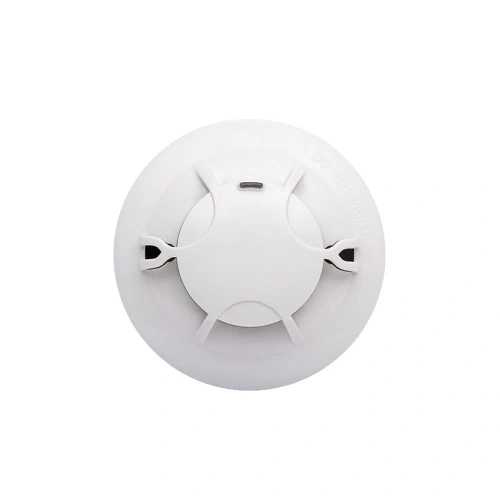

KET-SHD-160 Addressable Somke and Heat Detector

KET-SHD-160 Intelligent Heat and Photoelectric Smoke Combined Detector  is consisted of smoke sensing and semi-conductor temperature sensing parts in processing and circuitry. The detector has the advantages of both photoelectric smoke detector and rate of rise and fixed temperature heat detector. Just because of the combination technology of smoke detector and heat detector, it can detect and alarm the combustion of SH3 (polyurethane plastic fire) and SH4 (n-heptane fire) in the national standard test. It can also pick up fire with obvious rise of temperature such as alcohol fire, thus extending the application range. With novel structure and attractive appearance, the detector has stable and reliable performance and high damp-proof ability. It is suitable for restaurants, hotels, libraries, office buildings, school buildings, warehouses, power rooms, etc. Features 1. The detector can be addressed in field by using Hand Held Programmer, easy and reliable for commissioning. 2. Single chip uses real-time sampling and data processing system. 3. Temperature and humidity drift compensation, dust accumulation degree and fault detection function. 4. Self-diagnostic function. 5. Non-polarized signal 2-wire. 6.LPCB CERTIFIED Technical Specifications 1. Operating voltage Rated voltage: DC24V Range allowed DC18V~DC28V 2. Operating current Standby current: ≤ 0.3mA Alarm current: ≤ 0.9mA 3. Indicator Red. Flashes when polling, and illuminates in alarming. 4. Programming method Electronically programming (encoding range: 1~255). 5. Monitoring protection area The space height is 6~12 meters: 80m2 The space height is lower than 6 meters: 60m2 6. Wiring Non-polarized signal 2-wire 7. Operating environment Temperature: -10°C～+55°C Relative Humidity: ≤95%, non-condensing 8. Dimension Diameter: 100mm Height: 51mm (with base) 9. Ingress protection rating: IP23 10. Material and color of enclosure: ABS; milky white 11. Weight: about 110g 12. Mounting hole distance: 60mm 13. Standard: EN 54-29:2015
